TrimPAC EZ is an affordable and portable trim removal solution
Automatic trim waste collection increases line efficiency and reduces labor costs. PAC's TrimPAC EZ is an ideal solution for companies that need an affordable and portable trim waste handling solution fast.

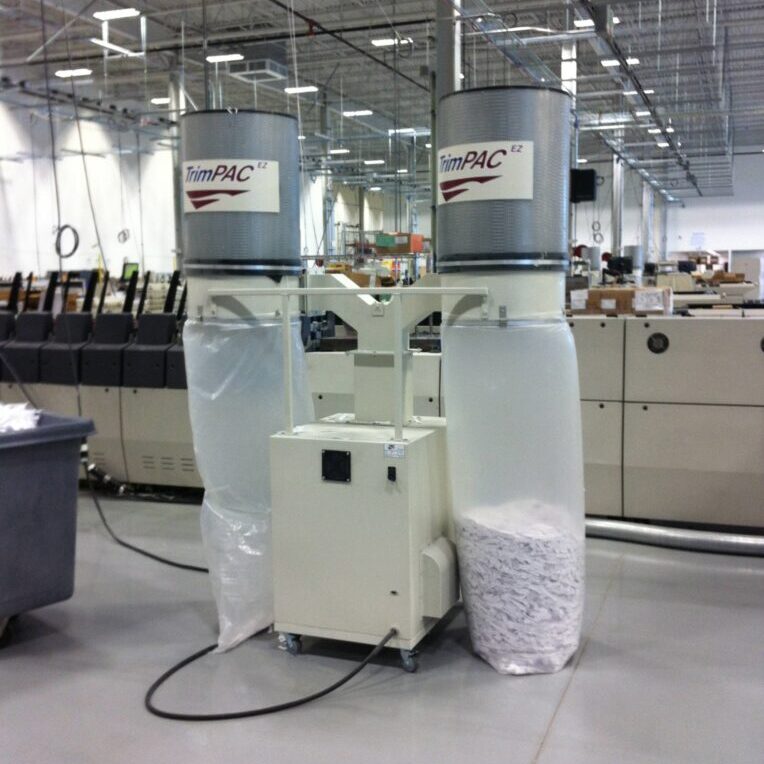

The TrimPAC EZ vacuums trim waste via an inline material handling fan, through an on-board cyclone and into one of two high-capacity collection bags. These dual collection bags allow continuous operation — you can divert trim into one bag while changing the other.
Particulates are separated from the airstream and sent through 1-micron filtration.
TrimPAC EZ Specifications
| Dimensions | |
|---|---|
| Length: | 66 1/4 inches |
| Depth: | 39 1/2 inches |
| Height: | 86 3/4 inches |
| Weight (Empty): | 300 lbs |
| Sound Level | |
|---|---|
| Sound Level: | 78 dB/A (Typical) |
| Air Volume: | ~ 570 CFM |
| Fan Motor: | 3 HP |
| Electrical | |
|---|---|
| Voltage range: | 208 – 240 VAC |
| Frequency: | 60 HZ |
| Phase/s: | 1/Single # |
| Full load amps: | 16 Amps |
Customizable
The TrimPAC EZ can handle paper, die cuts, knock outs and continuous trim on its own, but an optional cutter enhancement allows it to cut and capture film and sheet, and non-wovens.
Single or dual infeeds are available to best suit your needs.
Convenient
Because the TrimPAC EZ is pre-engineered, it can be delivered quickly, arriving ready to install and operate.
The virtually maintenance-free trim handling system is also portable. Lockable swivel casters allow you to safely move it from press to press.
